Coal Slime Concentration Classification Cyclone
Product Overview
Patented Technology

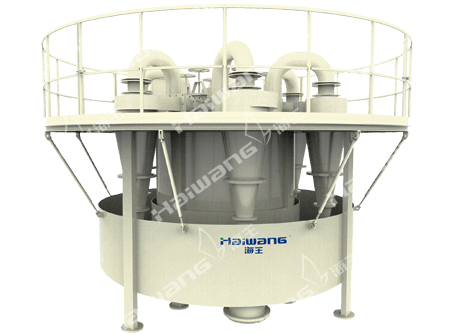

The FX series coal slime concentration and classification cyclone from Haiwang Company adopts fresh new cyclone structure so as to improve the classification efficiency and classification accuracy of hydrocyclone, which is applied for the recovery of coarse slime products by combining FBS, arc screen and coal slime centrifugal machine etc.

The FX series coal slime concentration and classification cyclone from Haiwang Company adopts fresh new cyclone structure so as to improve the classification efficiency and classification accuracy of hydrocyclone, which can adjust the dimension of vortex finder and apex conveniently by the request of cut size or concentration with the features of eash assembly, commissioning, maintenance and replacement. Meanwhile, it is usually used by parallelly combining with cyclone of same specification, working as a group.

Technical

• SThe biggest specification of FX series coal slime concentration classification cyclone is 1250mm with the capacity of 1300 m3/h till now;

• The cyclone is lined with abrasion resistant high-alumina ceramic, KM hard wearing composite material, PU polyurethane, nano-modified material etc. with long service life;

• FX coal slime concentration and classification cyclone is applied by combination with FBS, spiral separator, multi-layer screen etc. to recover the coarse coal slime products;

• FX coal slime cyclone if equipped with patented adjuatble apex ,which can adjust the apex size by power-operated / manual way for the feasible indicator adjustment and the visual window is convenient for the checking of current apex dimension so as to reduce the labor load for frequent changing of apex and improve the working efficiency.

Application

• coarse coal slime (0.2-3mm) in the coal beneficiation factory;

• beneficiation factory combines with sieve-bend screen, high frequency screen and  centrifugal machine to recover the coal slime process step;

• Suitable for concentration process step of coarse slime product after the separation by TBS, spiral separator and multi layer fine screen in coal beneficiation factory.
